Device Pre-Define

Device Pre-Define

This is used for setting up the network parameters for other SC4/400 controllers that are on different networks. This menu item shows up in the panel menu as well as the controller menu, however they both take the same path to the ‘Pre-define’ setup. This is also accessible from the top menu by clicking on ‘Program’ and then ‘Setup Pre-Defined’.

• The first window that appears after clicking on ‘Device’ and then ‘Pre Define’ will show the name of the current data store in view.

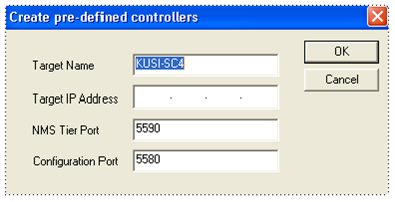

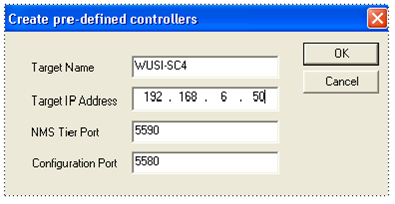

• Type in the name of the SC4/400 that would be on another network. This name should match the name of the controller icon in the system view. Also type in the IP address of that same SC4/400. Leave the Tier Port and Configuration Ports as the numbers 5590 and 5580 which should work in most configurations. Click ‘OK’ when done.

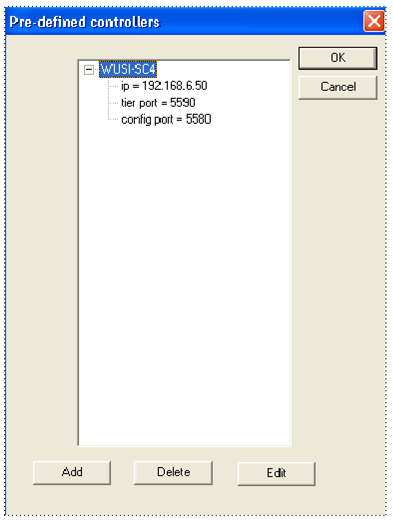

• In the next window click the + sign next to the controller name to see the settings. To add additional controllers on other networks, click the ‘Add’ button and follow the same steps as above.

• To delete a pre defined controller click on the controller name and then click the ‘Delete’ button.

• To make changes to a controller, click on the controller and then click the ‘Edit’ button.
