UCP DTA/DTB

UCP DTA/DTB

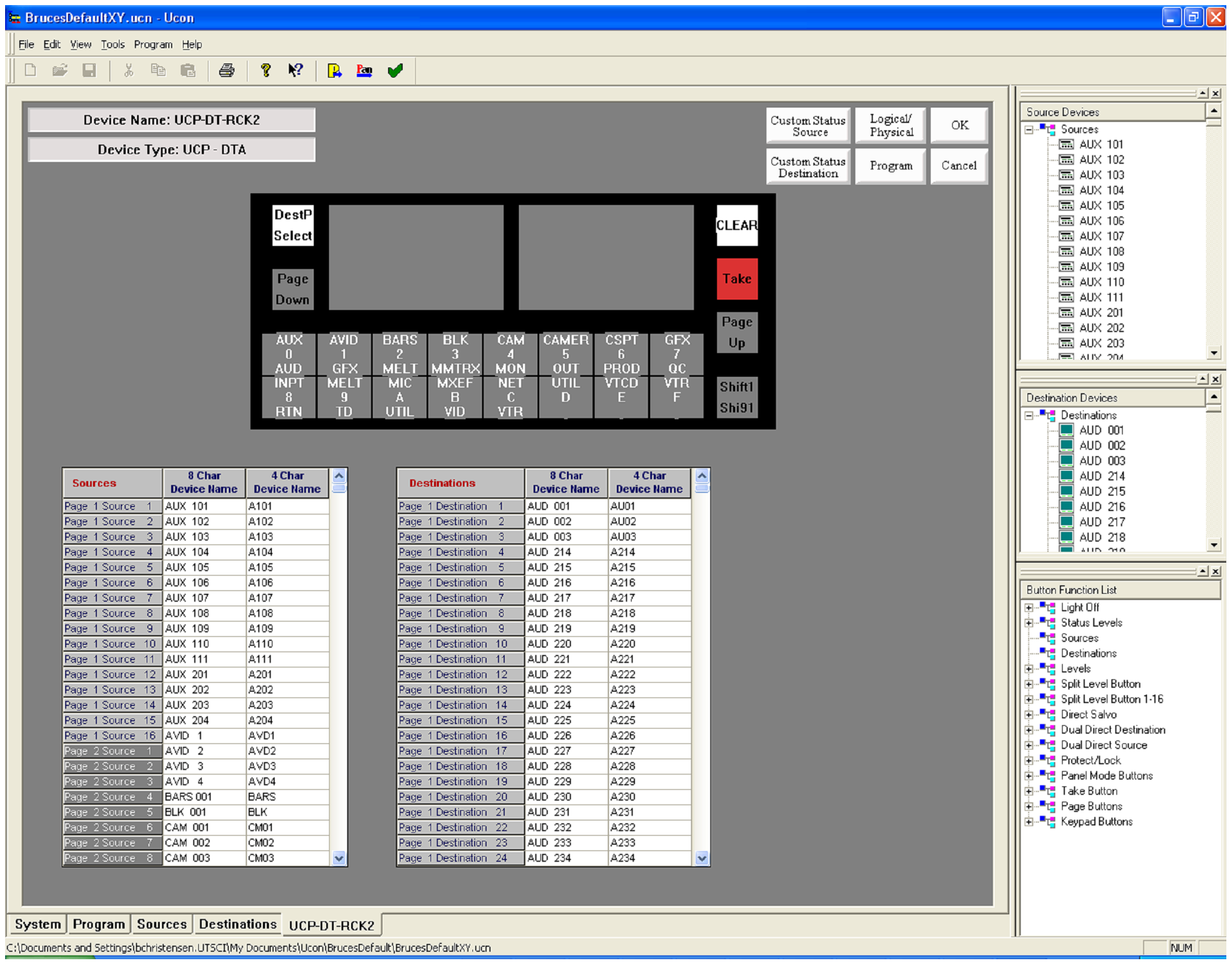

Although panel programming is the same, the UCP-DTA is relegendable while the UCP-DTB’s layout is fixed.

• These panels contain Include but not Exclude tables. The desired sources are placed on the pages you would like them to appear. 40 entries per-page are allowed on up to 25 pages.
• There are 12 destinations per page. To add the desired destination, drag each one to the desired destination page.
• To configure a group on a group button, left-click on any device in that group (from the “Source Devices” or “Destination Devices”) and drop it on the desired button. All of the sources or destinations in that group will be included in the panel, except the ones that are placed in the “Exclude” list.
