4 Character Name
This is only required for a couple of panel types but is recommended to be filled in as a smaller name of the 8 character name. Follow the same steps as the 8 character name only with half the size of entries.
NOTE: This function will only allow for the adding of a group name, the deletion of an existing name and changing the size of the extension. If a group needs to be deleted then the entire group must first be deleted from the source or destination table or it will give a deletion error. Also, the group name table includes all groups in both the source and destination tables so it doesn’t matter which table is selected to edit.
- While in the Source or Destination table, click the ‘Edit Group Names’ button located at the top right of the function buttons to the right of the main table.

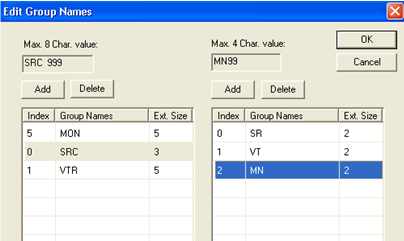

- The following table will open. When a group name is clicked on either the 8 or 4 character side it will highlight and show the name in the upper name box with as many number 9’s after it as there are extensions for that name, indicating what it will appear like in the table with as many possible extensions that may be used. The example shows the 8 character name with three 9’s and the 4 character name with two 9’s.

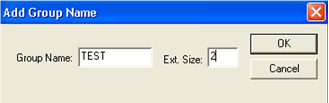

- To add a group name for the 8 or 4 character name, click the ‘Add’ button above the preferred section. Type the name in the ‘Group Name’ box and the number of extensions that will be used in this group as seen in the example box below. The name and extension together cannot exceed the 8 or 4 character parameters. Depending on how many entries the name has, will determine how many extensions are possible. If only one instance of the group is needed then it can contain all 8 or 4 entries for the name with no extensions.
- To change the extension size, click in the ‘Ext Size' window and change the number. This number can only be equal to 8 or 4 counting the group name.
- To delete a group, click on the name and then click ‘Delete’ above it. If there are groups in either the source or destination table then it will not allow the name to be deleted.
