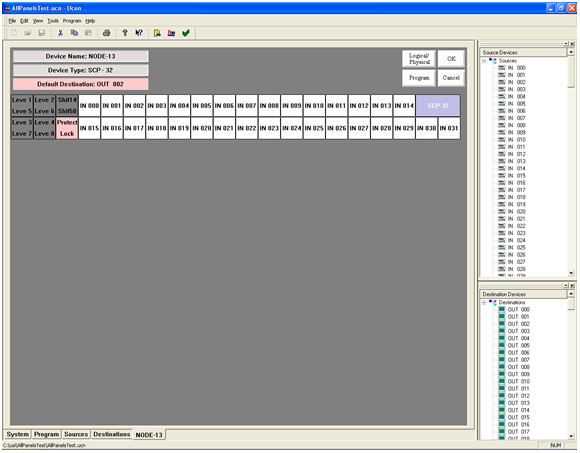

Using the SCP-32 Panel Screen

Using the SCP-32 Panel Screen

As with all SCP panels, the SCP-32 does not have button function editing capability.

• This panel is a single destination control panel with none of the buttons being used to select the destination. A default destination would require dragging a destination to the “Default Dest” box at the top of the screen.
• To set a source on the first button, left-click on the Source from the “Source Device” list and drop it onto a button. Then each source that is clicked (in the “Source Device” list) will be added to the next source button.
• To unassign a source from a specific button, use the right mouse button and click the button that you want to unassign.
