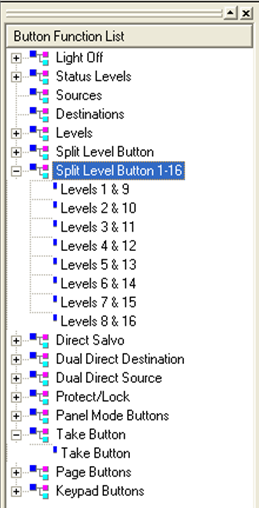

Split Level Button 1-16

The split level buttons were designed to be used on the UCP-XY, UCP-SX, and the UCP-MX. They give the user the ability to control 16 levels on 8 buttons, and should be used in conjunction with the “Panel Mode Buttons” and “Level Shift 1-8/9-16” button. This gives the user the ability to shift between levels 1-8 and 9-16.

If one of these levels are bright, it indicates that this level is valid for the currently selected destination.
