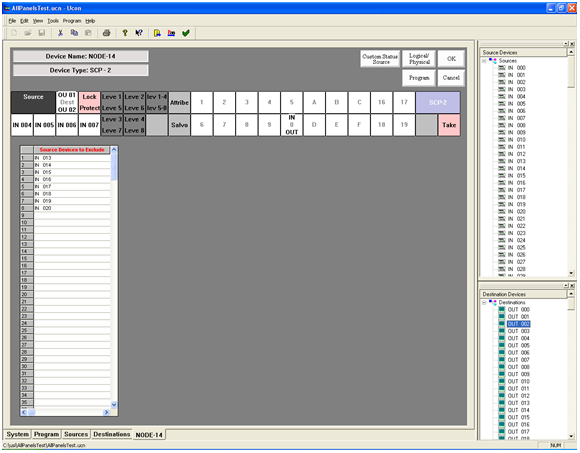

Using the SCP-2 Panel Screen
As with all SCP panels, the SCP-2 does not have button function editing capability.
- To configure the destination, left-click the desired destination at the right of the screen, then drag a destination from the “Destination Devices” list and drop it on the “Dest” button.
- This panel can be used to control one or two destinations. To control only one destination, simply keep the bottom half of the button unassigned.
- To configure a group on a group button, left-click any device in that group, then drag and drop the “Source Devices” to the desired button. All of the sources in that group will be included in the panel except the ones that are placed in the “Exclude” list.
- To configure a direct source in each of the four direct Source buttons, left-click the desired Source from the list and drag it onto the desired button.
- Devices can be “Excluded” from the panel by dragging any single or a range of devices from the “Source Devices” list. To select a range click on the first device then while holding down the shift click on the second device that you want to exclude. Now drag the highlighted section and drop it on the source or destination exclude list.
- To unassign a group name, destination, or direct source associated with a button, use the right mouse button and click on the button that you want to unassign.
