Dockable Assignment Windows

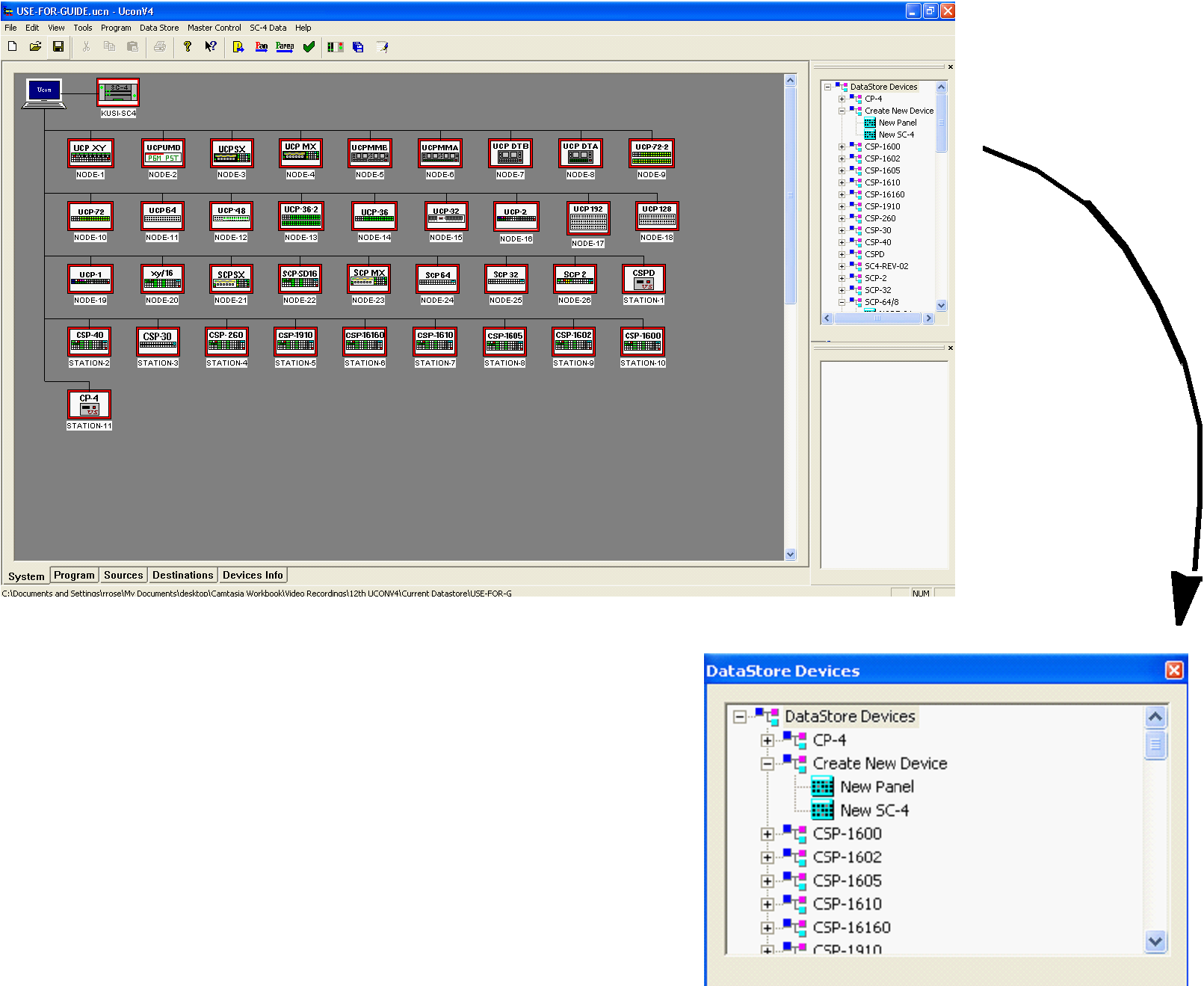

On the right-hand side of the screen you will find detachable windows containing information pertaining to the screen being viewed in the main screen. If the system view is displayed, these windows contain items that can be added to the configuration. The top window contains entries for new devices that do not yet exist anywhere in the system.

Its main purpose is for working offline in creating programming that will later go into the actual router devices.

Although all devices will appear within the above dialog, the only devices that can currently be configured and programmed from U-CON V4 are those found in the “Router Devices” section. These would include the SC-4/SC-400 and all router control panels. All other devices (such as ESI-2020, MCP-2020, etc.) will only appear as devices on the Network.
