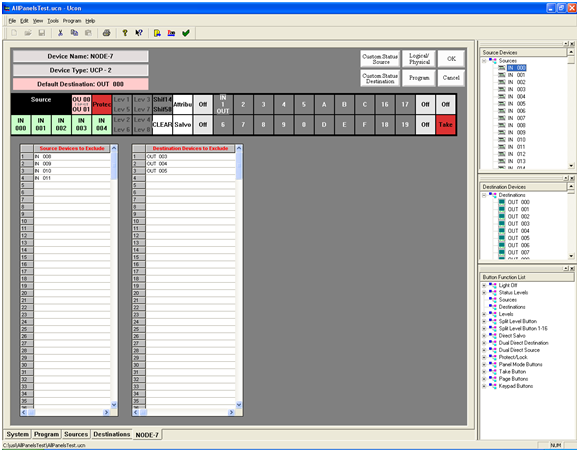

Using the UCP-2 Panel Screen
- The default functions for the panel are as shown. All of the buttons can be redefined to be different function by dragging a function from the “Button Function List” section and dropping it onto a button on the panel. (See Chapter 4 for additional detail.)
- Refer to the “Button Function List” (Section 4) to find what each button function does.
- To configure the destination, drag a destination from the “Destination Devices” list and drop it on the “Dest” button.
- This panel can be used to control one or two destinations. To control only one destination just do not assign a second destination to this button.
- To configure a group on a group button, drag a group from the “Source Devices” or “Destination Devices” and drop it on the desired button. All of the sources or destination in that group will be included in the panel except the ones that are placed in the “Exclude” list.
- Devices can be “Excluded” from the panel by dragging any single or a range of devices from the “Destination Devices” or Source Devices” list. To select a range click on the first device then while holding down the shift click on the second device that you want to exclude. Now drag the highlighted section and drop it on the source or destination exclude list.
- To unassign a button use the right mouse button and clink on the button that you want to unassign.
