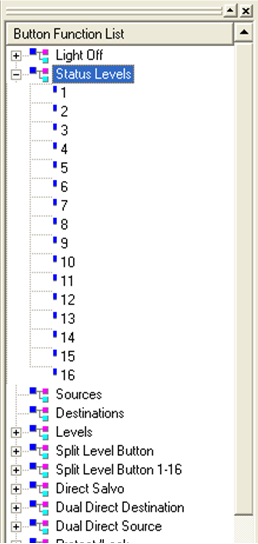

Status Levels

This type of button function is used for breakaway takes and to indicate which level is being statused on the source buttons. You can assign one of 16 levels to the buttons. The bright level is the one being statused. The dimly lit level buttons are the levels that are valid for this destination.

Press the Level button to select a level to be statused. It now becomes the bright level and it will be statused on the Source buttons. To setup a breakaway take, press the bright button again and the lamp will extinguish. As a result, this level will not be sent when the next Source button is pressed.
