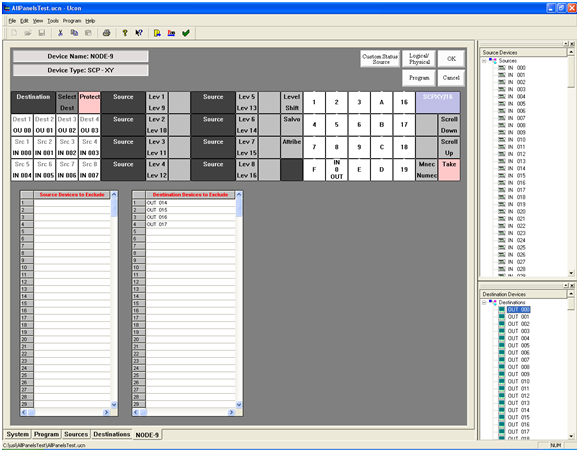

Using the SCP-XY Panel Screen
As with all SCP panels, the SCP-XY does not have button function editing capability.
- Assign a direct destination by dragging a destination from the “Destination Device” section of the screen and dropping it onto the direct destination buttons. After you have dragged one direct destination you can select the next three just by clicking on another “Destination Device” and it will be automatically assigned to the next button.
- Assign a direct source by dragging a source from the “Source Devices” section of the screen and dropping it onto the direct source buttons. After you have dragged one direct source you can select the next direct source by clicking on another “Source Device”. It will then be automatically assigned to the next button.
- To configure a group on a group button, left-click on any device in that group (from the “Source Devices” or “Destination Devices”) and drop it on the desired button. All of the sources or destinations in that group will be included in the panel, except the ones that are placed in the “Exclude” list.
- Devices can be “Excluded” from the panel by dragging any single or a range of devices from the “Destination Devices” or Source Devices” list. To select a range, click on the first device then while holding down the shift, click on the second device that you want to exclude. Now drag the highlighted section and drop it on the source or destination exclude list.
- The panel will use the first Direct Destination as the default destination (the one that it will use when the panel powers up).
- To unassign a group name, direct destination, or source on a button, use the right mouse button and click the button that you want to unassign.
