Program Selected Panels
This button is used to program devices that are selected in individual, random order or as a group of devices that are selected in order. When the button is pressed it will program only the devices that are selected.
- To select individual devices that are not in order, hold down the ‘Ctrl’ button on the keyboard and then click the left mouse button on the first device in the group to be selected.

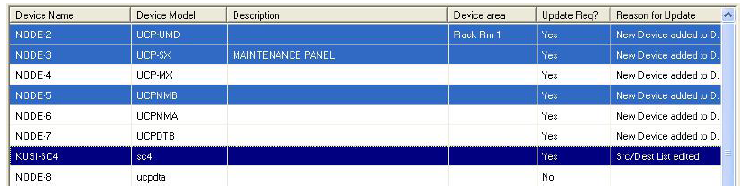

- While still holding down the ‘Ctrl’ button, next click on each device that is to be in the group of selected items to be programmed. The following figure is an example of how this might look.
- Click the ‘Program Selected Panels’ button and all the selected devices will be programmed one by one. To view the programming progress and to verify all devices were programmed go to the tab at the bottom of the screen titled ‘Program’.
- To select items that are in order, hold down the ‘Shift’ button on the keyboard and then click the left mouse button on the first device in the list to be selected.

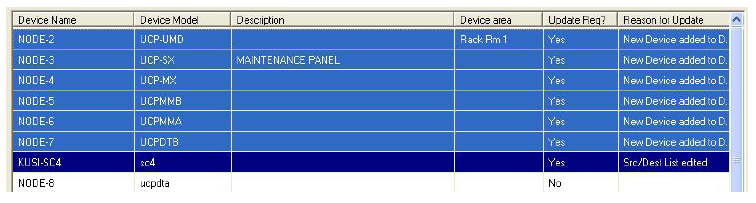

- While still holding down the ‘Shift’ button, next click on the last item in the list of devices to be selected and it will highlight the entire group. The following figure is an example of how this might look.
- Click the ‘Program Selected Panels’ button and all of the selected devices will be programmed one by one. To view the programming progress and to verify all devices were programmed go to the tab at the bottom of the screen titled ‘Program’.
