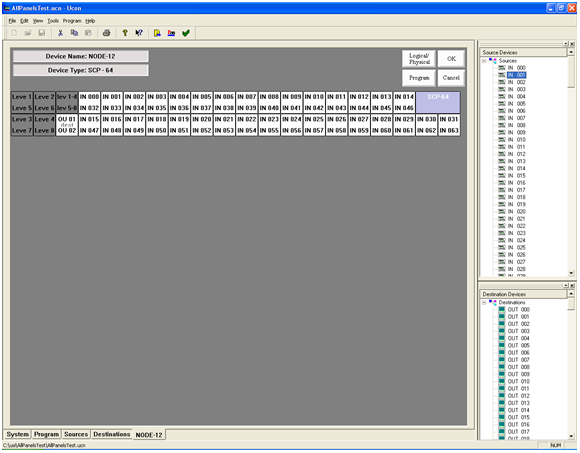

Using the SCP-64 Panel Screen

As with all SCP panels, the SCP-64 does not have button function editing capability.

• This panel comes with one “Dual Destination” button and or “Source Shift” button.
• The Destination button can be assigned either a single destination or two destinations. If 1 destination is specified, all 64 buttons (both halves of each Source button) selects the source for that destination. If two destinations are assigned, the panel becomes two 32 source panels -- the top row of sources specifying selection for the top destination and the bottom row assigning for the bottom destination.
• If only one destination is assigned to the panel, the “Dest” button becomes a Source Shift button to select one of 64 sources to that destination.
• Right-click any button to unassign that particular button.
• To set up a source, drag a source device from the “Source Device” list and drop it onto a Source button. A feature is provided to assist in easier and quicker button assignment. Once a button has been assigned, subsequent selection (single left button click select) will assign that selected device to the next button on the panel.
• Destinations can be assigned by dragging and dropping a destination onto the “Dest” button.
