Screen Resolution

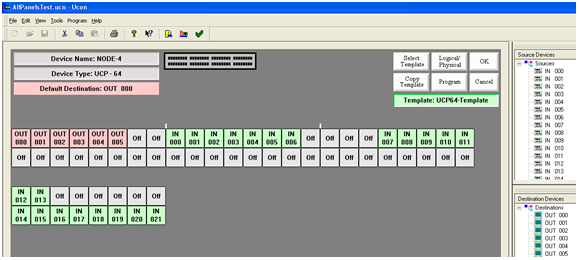

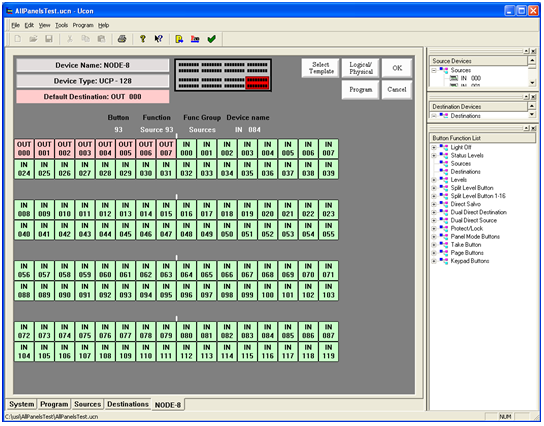

Below we see additional screens that ultimately need to be added to the UCP-64/128 section. These are examples of how the screen may be laid out based on the computer's screen resolution.

When the mouse is moved over a button the Red box at the top of the screen changes to indicate which bank of switches the button is associated with.

The screen also changes based on the resolution of the computer.

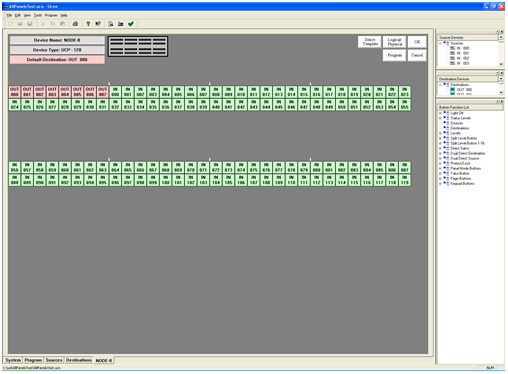

The following examples display varying (selected) screen resolutions.

Select one of the above panels and then click OK.

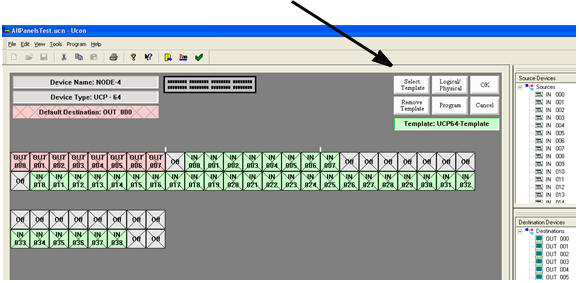

After linking to a panel, you can click the “Copy Template” button to inherit all the buttons from the template panel. An “X” is placed over each button that will be used from the template.

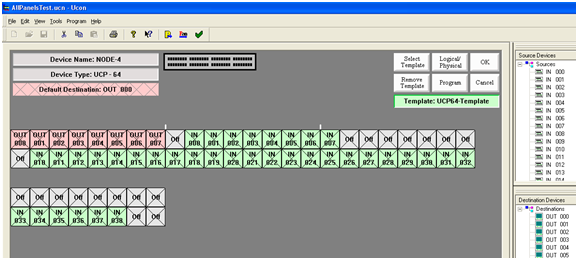

If you want to unlink any specific button, simply double click the button and the “X” will disappear. The button can now be assigned in the normal manner. To re-enable inheritance double click the button and the “X” will re-appear.

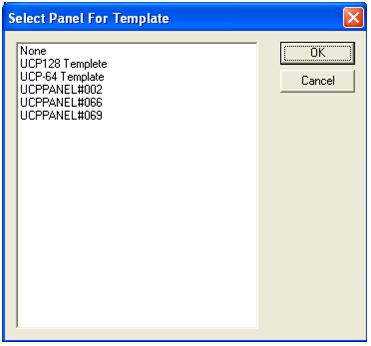

You can also de-select a template for inheritance by clicking the Select Template button on the panel configuration screen, or by highlighting None and clicking OK in the Select Panel for Template window (shown below).
