Clear Selected Panels Area

Clear Selected Panels Area

This button is used for clearing areas assigned to devices. The devices are selected in individual, random order or as a group of devices that are selected in order. When the button is pressed it will remove the area for all the devices that are highlighted.

• To select individual devices that are not in order, hold down the ‘Ctrl’ button on the keyboard and then click the left mouse button on the first device in the group to be selected.

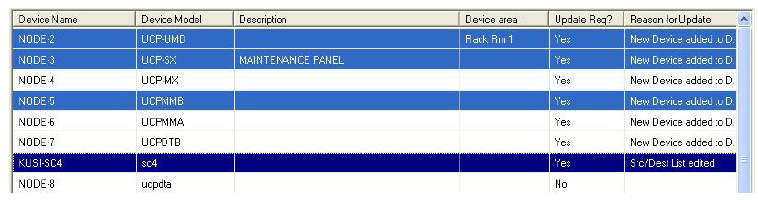

• While still holding down the ‘Ctrl’ button, next click on each device that is to be in the group of selected items to clear the area from. The following figure is an example of how this might look.

• Click the ‘OK’ button and all the selected device areas will be removed from the ‘Device Area’ column view.

• To select items that are in order, hold down the ‘Shift’ button on the keyboard and then click the left mouse button on the first device in the list to be selected.

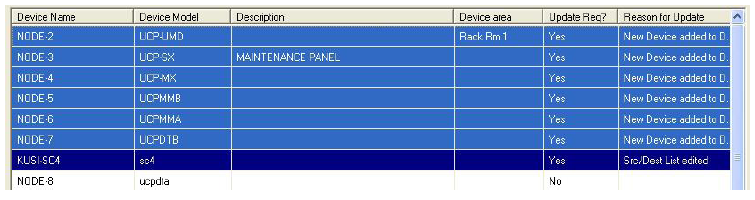

• While still  holding down the ‘Shift’ button, next click on the last item in the list of devices to be selected and it will highlight the entire group. The following figure is an example of how this might look.

• Click the ‘OK’ button and all the selected device areas will be removed from the ‘Device Area’ column view.
