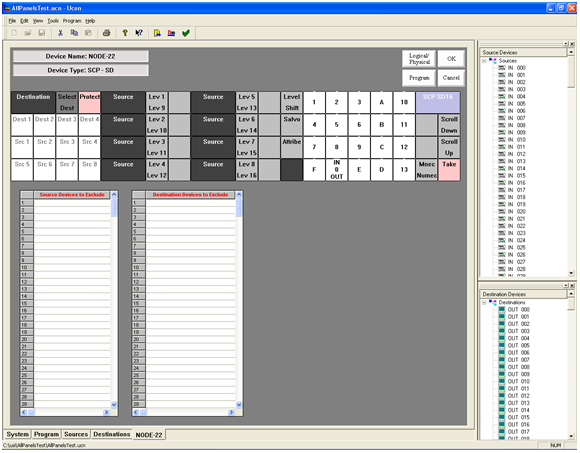

Using the SCP-SD16 Panel Screen
- Currently there is not a screen skin for the SCP-SD16. So the skin that is used is the SCP-XY.
- There are only 16 group buttons on the SD-16. However, the skin offers the possibility for up to 20 groups. (Buttons 16-20 are typically unused with this panel.)
- There are no direct source or direct destination button on the SD16. Therefore these buttons should be left empty for this panel type.
- To configure a group on a group button, drag a group from the “Source Devices” or “Destination Devices” and drop it on the desired button. All of the sources or destination in that group will be included in the panel except the ones that are placed in the “Exclude” list.
- Devices can be “Excluded” from the panel by dragging any single or a range of devices from the “Destination Devices” or Source Devices” list. To select a range, click on the first device. Then while holding down the shift key, click on the second device that you want to exclude. Now drag the highlighted section and drop it on the source or destination exclude list.
- To unassign a button, use the right mouse button and click on the button that you want to unassign.
